IntelliCPCP® Intelligent Conical PCP System
Overview

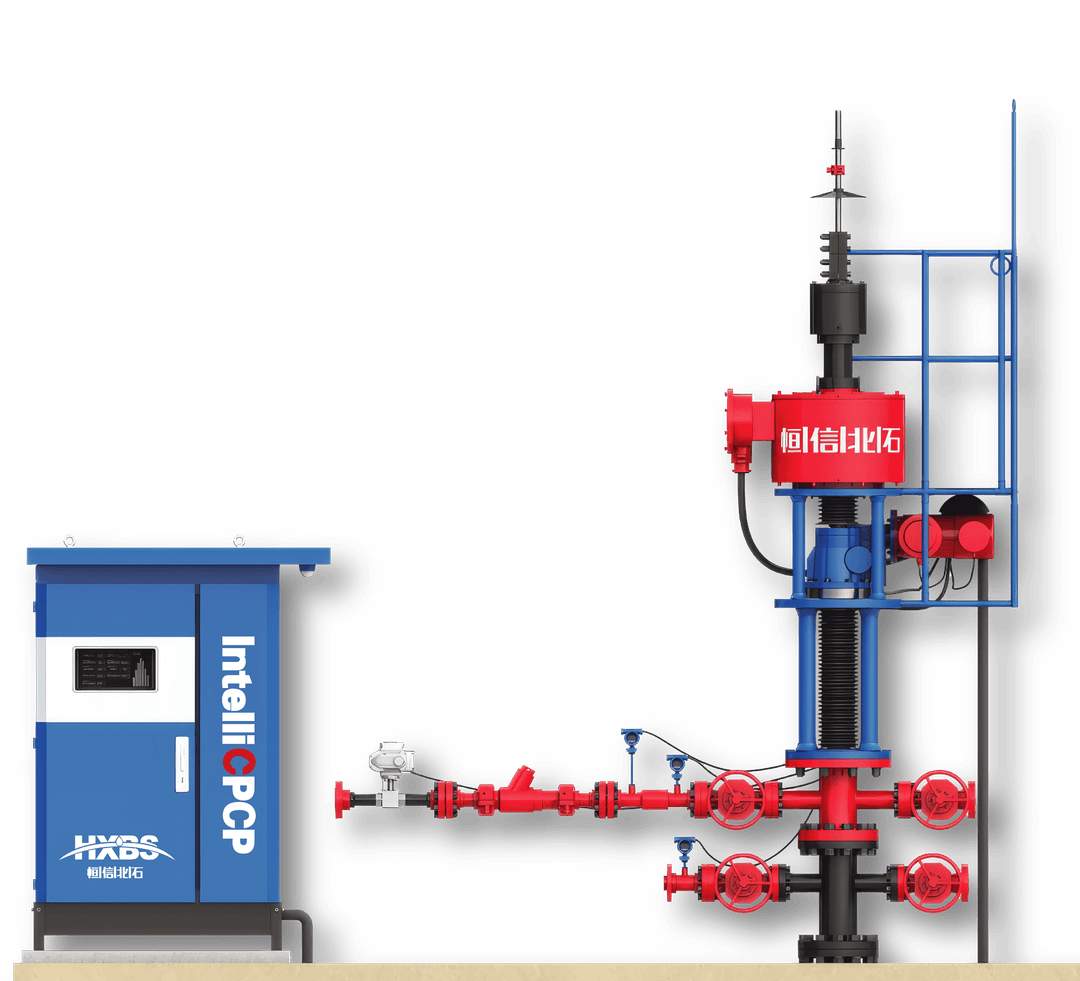

Surface Drive DynaRL™
Synchronous Rotation & Lifting Assembly
IntelliCPCP DynaRL™ surface drive system enables synchronous rotor rotation and lifting control, providing ultra-precise real-time clearance adjustment for conical progressing cavity pumps.
Wellhead Cross Assembly
Self-Sealing & Cross Assembly
IntelliCPCP cross features unique THERMOLOCK™ surface protection components, enabling integrated injection-production throughout thermal recovery processes with self-sealing blowout and leak prevention.

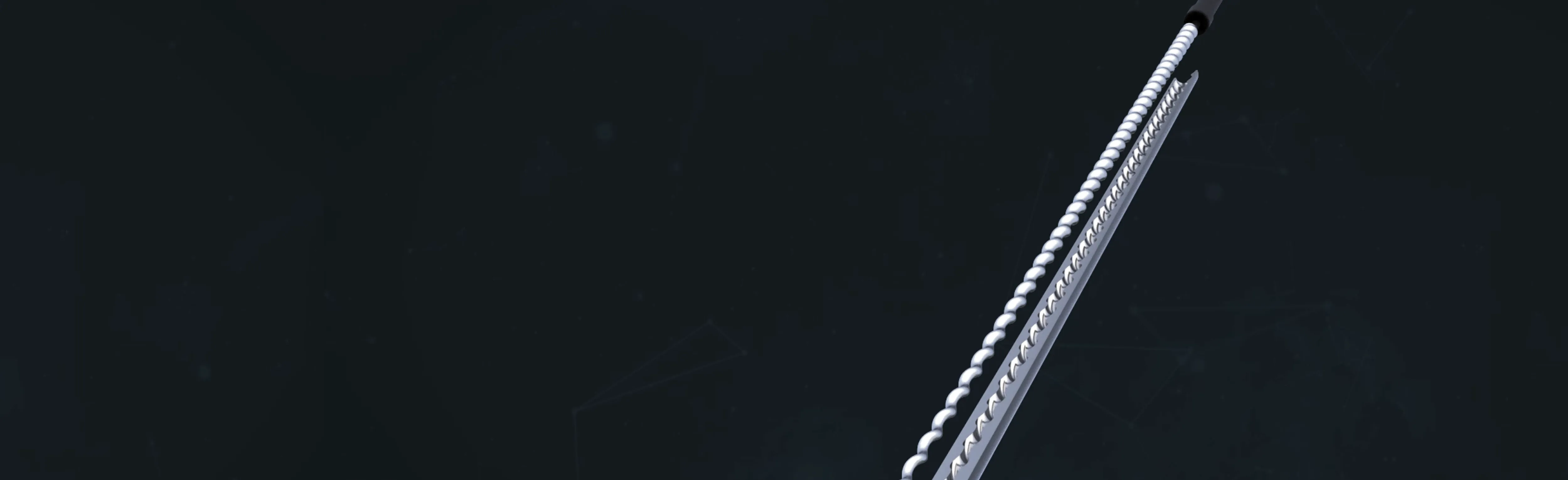

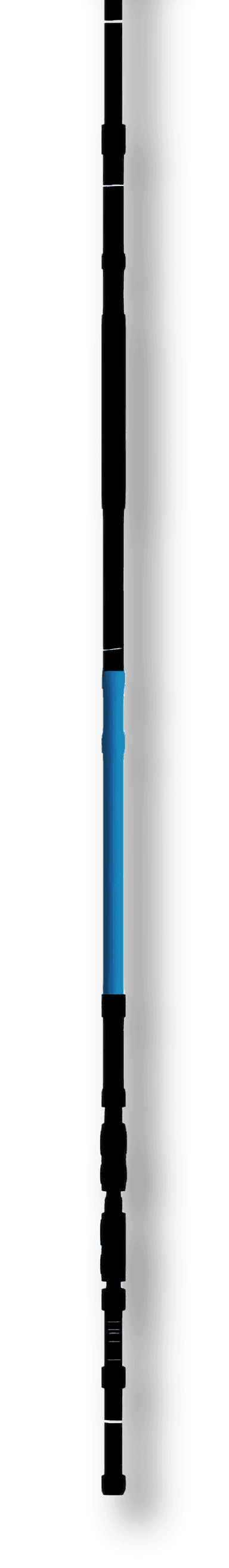

Downhole Pumping FERROXIS™
All-Metal Conical PCP Assembly
IntelliCPCP FERROXIS™ pump features conical geometry for both stator and rotor,
with variable radial clearance between conical stator and rotor.
This introduces a new dimension of clearance adjustment for PCPs,
providing fundamental solutions for lifespan compensation and pump efficiency optimization.
Proprietary nitriding process significantly optimizes hardening depth,
providing ample margin for continuous lifespan compensation.
Downhole Stabilization Graspos™
Balancing Assembly
IntelliCPCP Graspos™ downhole balancing assembly provides bottom-set positioning and radial centralization for conical progressing cavity pumps.
Core Advantages

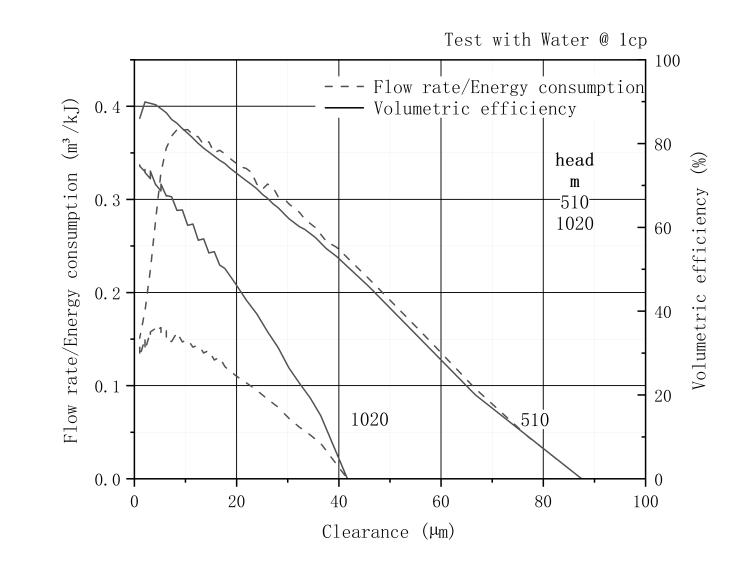

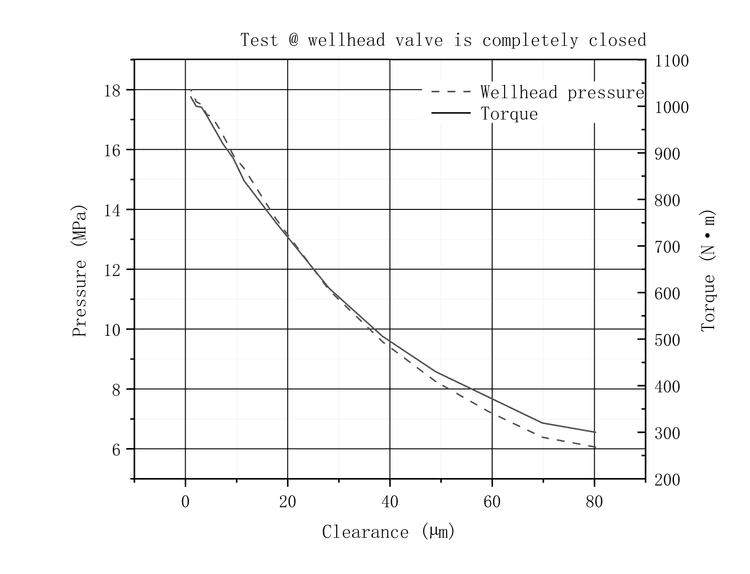

As the gap between the rotor and stator decreases, the volumetric efficiency of the conical screw pump will gradually increase;
When dealing with low-viscosity media, appropriately reducing the gap can effectively increase production.
Increasing the fit clearance between the stator and rotor can reduce the flow resistance of the medium;
allowing high-viscosity media to pass through the pump body smoothly, effectively enhancing the pump's ability to handle thick fluids (maximum allowable viscosity, regardless of temperature: 20,000 mPa·s).
Application Well Conditions
CSS and SAGD Applications
Highly Deviated Horizontal Wells
CHOP (Cold Heavy Oil Production)
Ultra-Heavy Crude Oil Wells
Low Permeability Oil Wells
Specifications Series
| GLB258-17C | GLB258-25C | GLB311-12C | GLB322-20C | |
|---|---|---|---|---|
| Fluid Compatibility | Ultra-heavy crude, conventional crude, sand-laden fluids, high-water-cut crude, and multiphase flow (including associated gas) | |||
| Applicable Bottomhole Temp (BHT), °C [°F] | -10 ~ 380 [-14 ~ 716] | |||
| Fluid Viscosity, mPa·s [cP] | 1 ~ 20,000 | |||
| Rated Rotational Speed, rpm | 200 | |||
| Max. Wellbore Deviation, ° | ≤ 80 | |||
| Dogleg Severity (DLS), °/30m [°/100ft] | < 2 | |||
| Applicable Casing Size, in. | ≥ 5.5 | |||
| Max. Downhole Component OD, mm [in.] | 114 / 135 [4.5 / 5.3] | |||
| Pump Setting Depth, m [ft] | 1,000 [3,280] | 1,500 [4,921] | 800 [2,624] | 1,500 [4,921] |
| Rated Dynamic Head, m [ft] | 1,700 [5,577] | 2,200 [7,217] | 1,000 [3,280] | 1,800 [5,905] |
| Theoretical Displacement @ 100 rpm, m³/d [bbl/d] | 37 [232] | 37 [232] | 45 [283] | 46 [289] |
| Speed Adjustment Range, rpm | 0 ~ 200 | |||
| Mean Time Between Failures (MTBF), yr | ≥ 3 | |||
| Sand Content, % | ≤ 0.3 | |||
| H₂S Content, % | ≤ 2 | |||
| CO₂ Content, % | ≤ 30 | |||
Control System

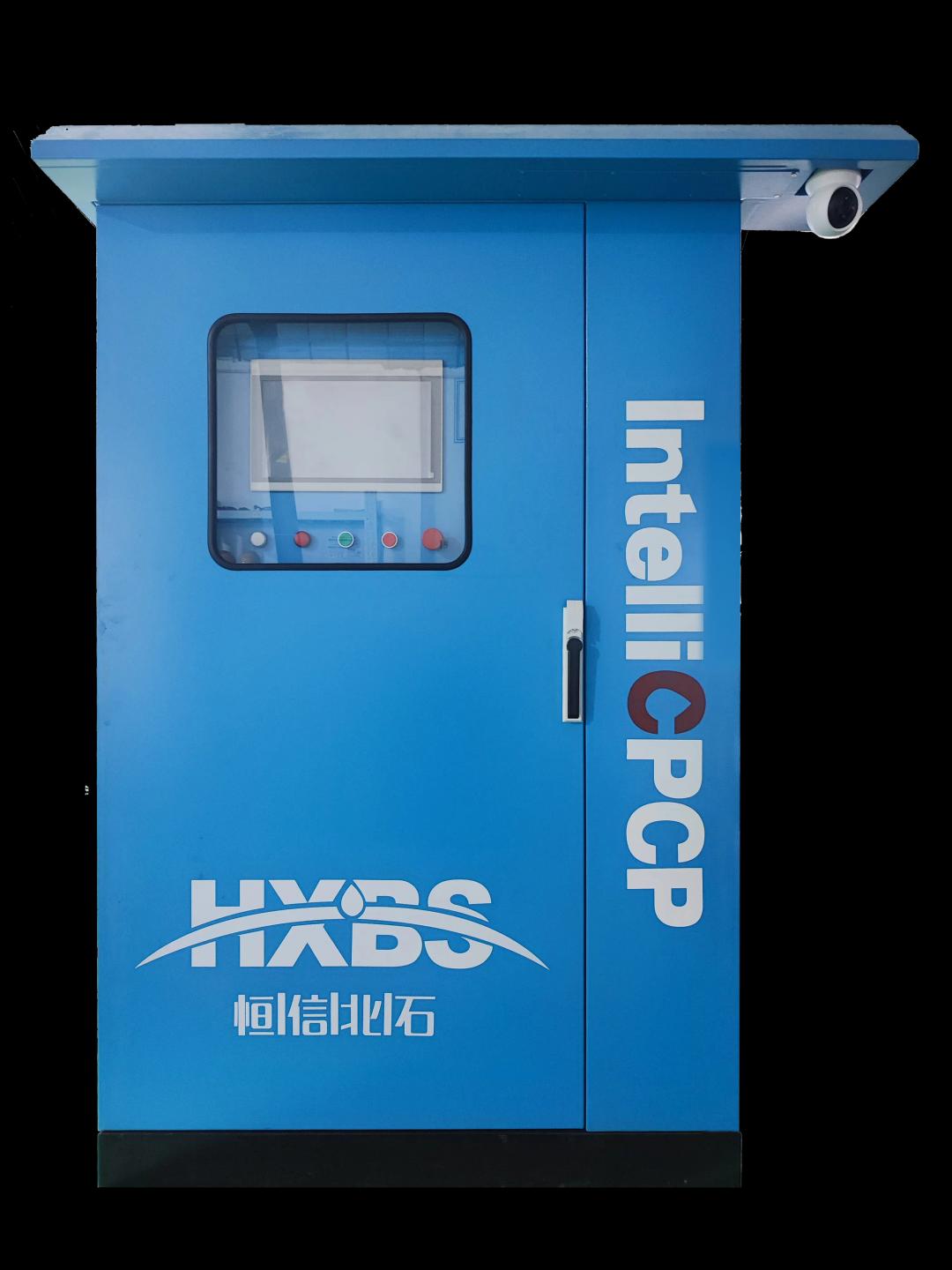

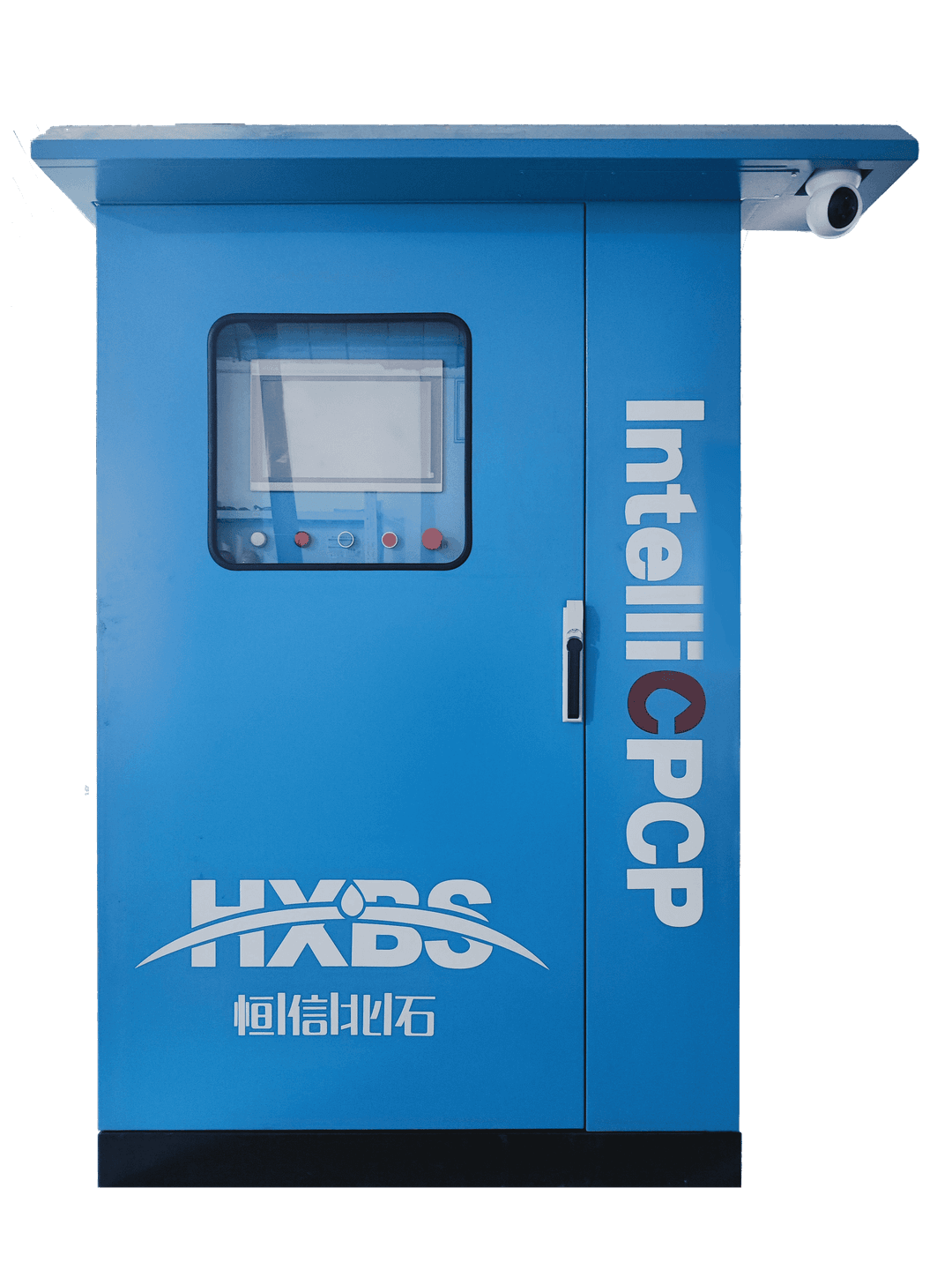

Pump System Drive Control Synergix™
Dedicated AFE, HMI, PLC Assembly for Conical PCPs

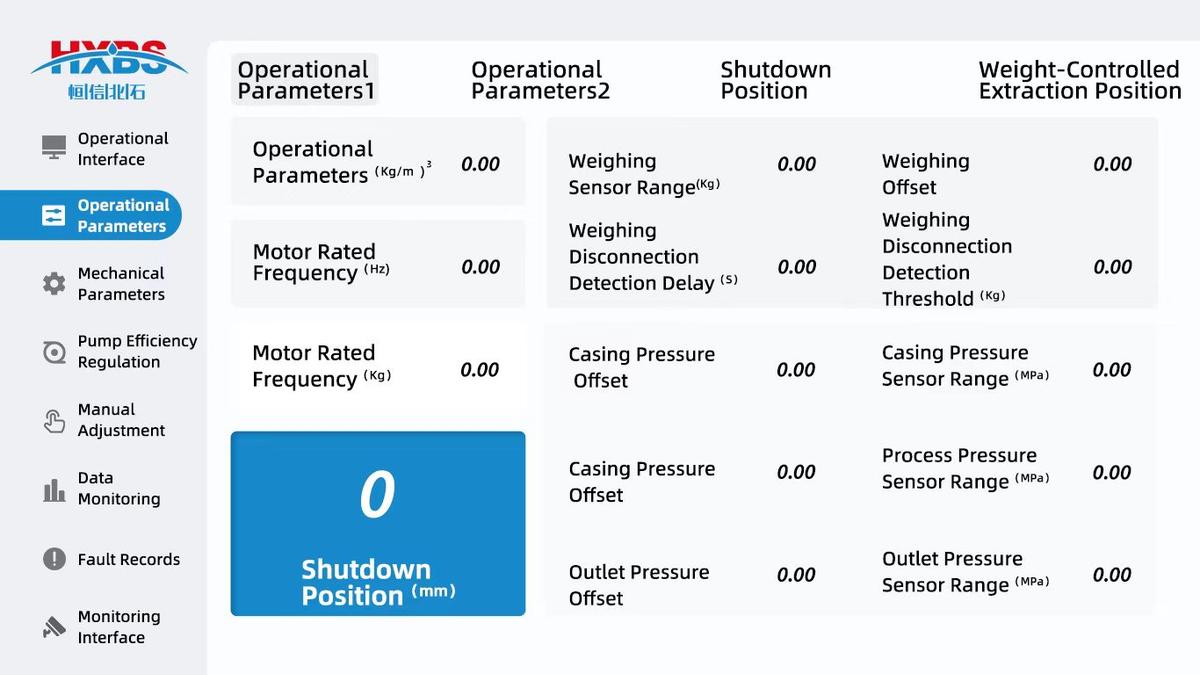

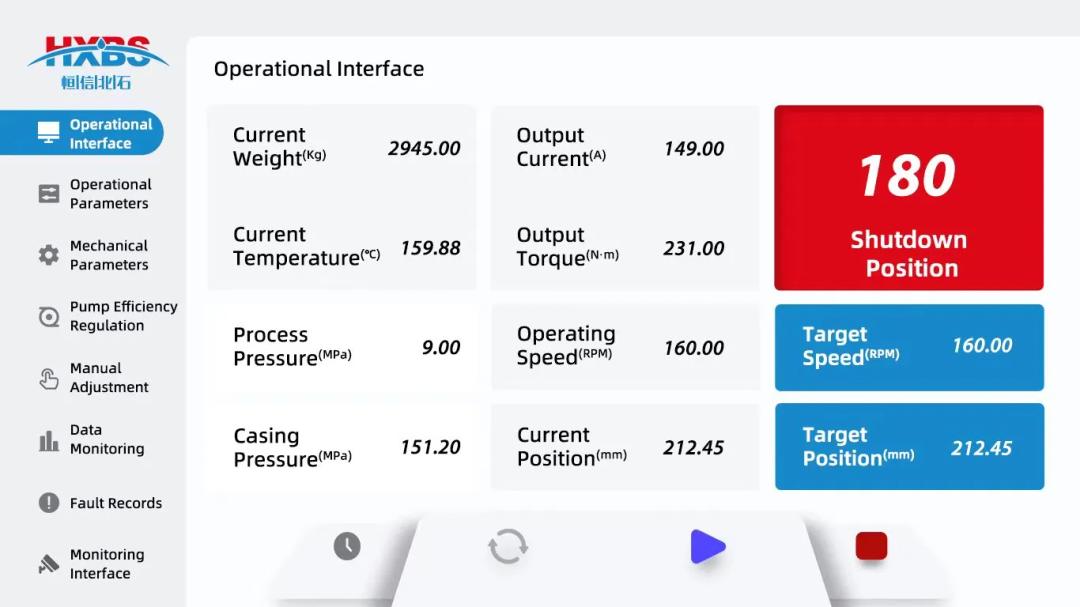

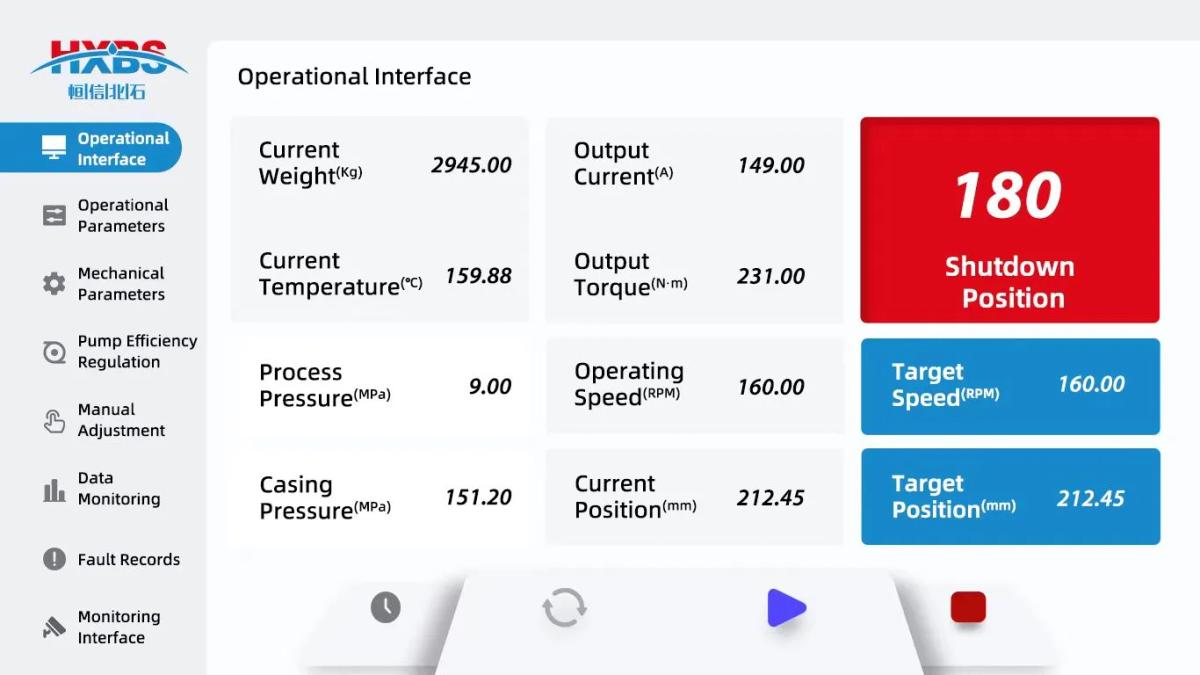

IntelliCPCP Synergix™ delivers reliable drive technology with various sensors, frequency converters, process control systems and touchscreen interfaces.
Features conical PCP-specific functions including real-time efficiency adjustment, sand management, anti-sticking, and fluid level management.
